显示多列内容

为了便于学习本节的内容,可以先打开CaseStudy目录下的文件“ListView.Table”,并参考该文件名为“示例三”的窗口。

前面的例子中,ListView都只显示了图标和标题,实际上ListView可以像表一样,同时显示多列内容。

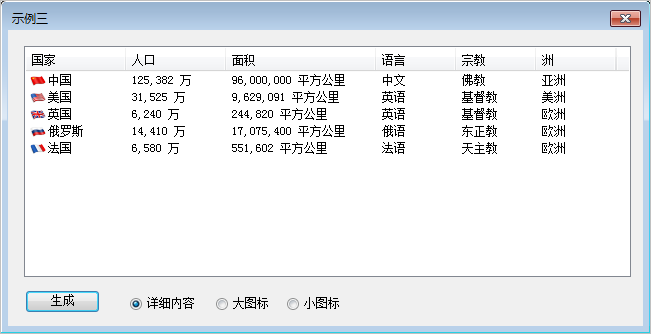

本节的任务是用ListView设计一个下图所示的窗口,显示各国更详细的信息:

设计步骤:

1、在窗口中分别插入一个ListView和Button控件,以及三个RadionButton控件:

2、将按钮的Click事件代码设置为:

Dim lvw As WinForm.ListView = e.Form.Controls("ListView1")
lvw
.Columns.Clear() '清除原来的列
lvw
.Rows.Clear() '清除原来的行
lvw
.Images.Clear() '清除原来的图片
lvw
.View = ViewMode.Details '显示模式为详细信息
Dim
cls() As String = {"国家","人口","面积","语言","宗教",""} '定义列名
Dim
wds() As Integer = {100,100,150,80,80,80} '定义列宽
For
i As Integer = 0 To  cls.Length - 1

Dim c As WinForm.ListViewColumn = lvw.Columns.Add()

c.Name = cls(i) '指定列名

c.Text = cls(i) '指定标题,这里标题和列名相同

c.Width = wds(i) '指定列宽
Next

Dim
nms() As String = {"中国","美国","英国","俄罗斯","法国"} '定义国名
Dim
rks() As String = {"125,382","31,525","6,240", "14,410","6,580"} '各国人口数量
Dim
mji() As String = {"96,000,000","9,629,091","244,820", "17,075,400","551,602"} '各国国土面积
Dim
lan() As String = {"中文","英语","英语","俄语","法语"} '各国语言
Dim
zhj() As String = {"佛教","基督教","基督教", "东正教","天主教"} '各国主要宗教
Dim
szh() As String  = {"亚洲","美洲","欧洲","欧洲","欧洲"} '各国所在洲
Dim
ics() As String = {"China","USA","UK","Russia","France"} '各国对应的图标键值
For i As Integer = 0 To nms.Length - 1
    lvw.Images.AddImage(ics(i),ics(i) & "
.ico", ics(i) & "48.ico") '添加代表这个国家的一对图标
    Dim
r As  WinForm.ListViewRow lvw.Rows.Add() '增加一行

r.ImageKey = ics(i) '指定图标键值

r("国家") =  nms(i) '设置各列的值

r("人口") =  rks(i) & " "

r("语言") = lan(i)

r("面积") = mji(i) & " 平方公里"

r("宗教") = zhj(i)

r("洲") = szh(i)
Next

3、分别设置三个RadionButton控件的代码:

详细信息:

If e.Sender.Checked = True Then
    Dim lvw As WinForm.ListView = e.Form.Controls("ListView1")

lvw.View = ViewMode.Details '显示模式切换为详细内容
End
If

大图标:

If e.Sender.Checked = True Then
    Dim
lvw As WinForm.ListView = e.Form.Controls("ListView1")

lvw.View = ViewMode.LargeIcon '显示模式切换为大图标
End
If

小图标:

If e.Sender.Checked = True Then
    Dim
lvw As WinForm.ListView = e.Form.Controls("ListView1")

lvw.View = ViewMode.SmallIcon '显示模式切换为小图标
End
If

一些提示:

1、只有显示模式为详细信息的时候,ListView才会显示多列数据。

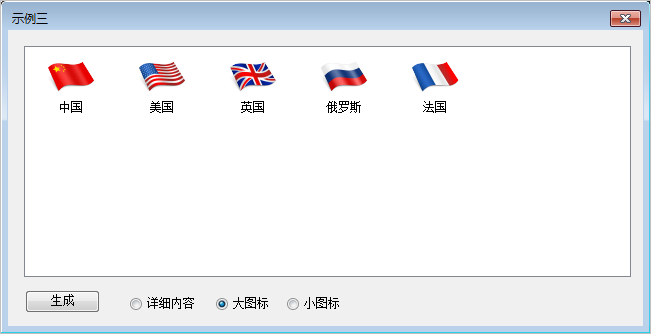

2、当显示模式为大图标或者小图标的时候,第一列的内容作为标题使用:
