绘制表格

PDFCreater通过逐个绘制单元格的方式来绘制表格，参考代码：

Dim file As String = "c:\temp\test.pdf"
Dim pdc As New PDFCreator()
Dim rectPage As RectangleF = pdc.PageRectangle
rectPage.Inflate( - 72,  - 72)
Dim rectCell As RectangleF = rectPage
Dim rowHeight As Integer = 20 '行高
Dim colWidths() As Integer = {120, 100, 74, 74, 100} '各列宽度
For r As Integer = 0 To 6 '绘制7行
    rectCell.Height = rowHeight '设置行高
    For c As Integer = 0 To 4 '逐一绘制这行的单元格
        rectCell.Width = colWidths(c) '单元格宽度
        pdc.DrawRectangle(pens.Black, rectCell) '绘制单元格边框
        rectCell.Offset(rectCell.Width, 0) '右移 一列
    Next
    rectCell.Offset(0, rowHeight) '下移 一行
    rectCell.X = rectPage.X '单元格回到水平初始 位置，准备绘制下一行
Next
pdc.Save(file) '保存文件
Process.Start(file) '打开文件

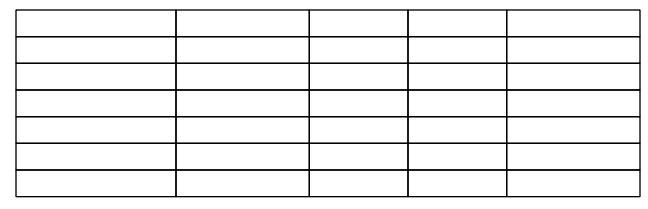

生成的表格为：

你可以加上单元格内容：

Dim file As String = "c:\temp\test.pdf"
Dim fnt As New Font("微软雅黑", 12)
Dim pdc As New PDFCreator()
Dim rectPage As RectangleF = pdc.PageRectangle
rectPage.Inflate( - 72, - 72)
Dim rectCell As RectangleF = rectPage
Dim rowHeight As Integer = 20 '行高
Dim colWidths() As Integer = {120, 100, 74, 74, 100} '各列宽度
For r As Integer = 0 To 6 '绘制7行
    rectCell.Height = rowHeight '设置行高
    For c As Integer = 0 To 4 '逐 一绘制这行的单元格
        rectCell.Width = colWidths(c) '单元格宽度
        pdc.DrawRectangle(pens.Black, rectCell) '绘制单元格边框
        Dim rectContent As RectangleF = rectCell
        rectContent.Inflate( - 3, - 3) '设置单元格边距
        pdc.DrawString(CExp("R{0}C{1}", r + 1, c + 1), fnt, Color.Black, rectContent) '绘制单元格内容
        rectCell.Offset(rectCell.Width, 0) '右移 一列
    Next
    rectCell.Offset(0, rowHeight) '下移 一行
    rectCell.X = rectPage.X '单元格回到水平初始位子，准备绘制下一行
Next
pdc.Save(file) '保存文件
Process.Start(file) '打开文件

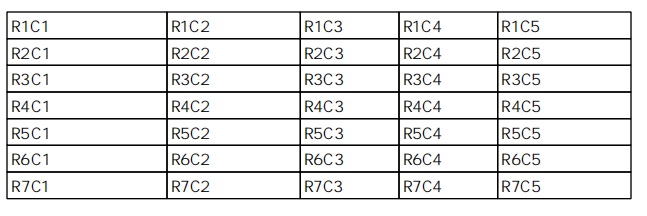

生成的表格为：
