使用TextBox

添加TextBox的参考代码如下，可在命令窗口测试执行：

Dim file As String = "c:\temp\test.pdf"
Dim fnt As New Font("微软雅黑", 12)
Dim pdc As New PDFCreator()
Dim rectPage As RectangleF = pdc.PageRectangle
Dim rect As RectangleF = rectPage
rect.Inflate( - 72, - 72)
'用于添加TextBox的Lambda过程，tOffSet为文本框和标题的水平距离，tWidth为文本框宽度，tDefaultText为默认值,tRows为行高倍数
Dim CreateTextBox =
Sub(tCaption As String, tFont As Font, tRect As RectangleF, tOffSet As Double, tWidth As Double, tDefaultText As String, tRows As Integer)
    pdc.DrawString(tCaption & ":", tFont, color.Black, tRect)
    Dim tRectBox As New RectangleF(tRect.Left + tOffSet, tRect.Top - 2, tWidth, tFont.Size * tRows + 4)
    Dim tTextBox As New PDF.PdfTextBox()
    tTextBox.Font = tFont
    tTextBox.BorderColor = Color.Azure
    tTextBox.BorderWidth = PDF.FieldBorderWidth.Medium
    tTextBox.DefaultText = tDefaultText
    If tRows > 1 Then
        tTextBox.IsMultiline = True
        tTextBox.Alignment = StringAlignment.Near
    End If
    pdc.AddField(tTextBox, tRectBox)
End Sub
CreateTextBox.Invoke("姓名", fnt, rect, 40, 160, "张三", 1)
rect.Offset(0, 25)
CreateTextBox.Invoke("部门", fnt, rect, 40, 160, "销售部", 1)
rect.Offset(0, 25)
CreateTextBox.Invoke("年龄", fnt, rect, 40, 160, "50", 1)
rect.Offset(0, 25)
CreateTextBox.Invoke("备注", fnt, rect, 40, 160, "请输入备注", 4)
pdc.Save(file)
Process.Start(file)

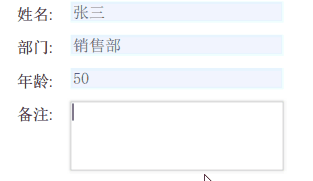

生成的文档如下：
