常用流程图符号的绘制

本节内容可以参考文件"\CaseStudy\流程图\纯代码流程图\纯代码绘制之六.Table"

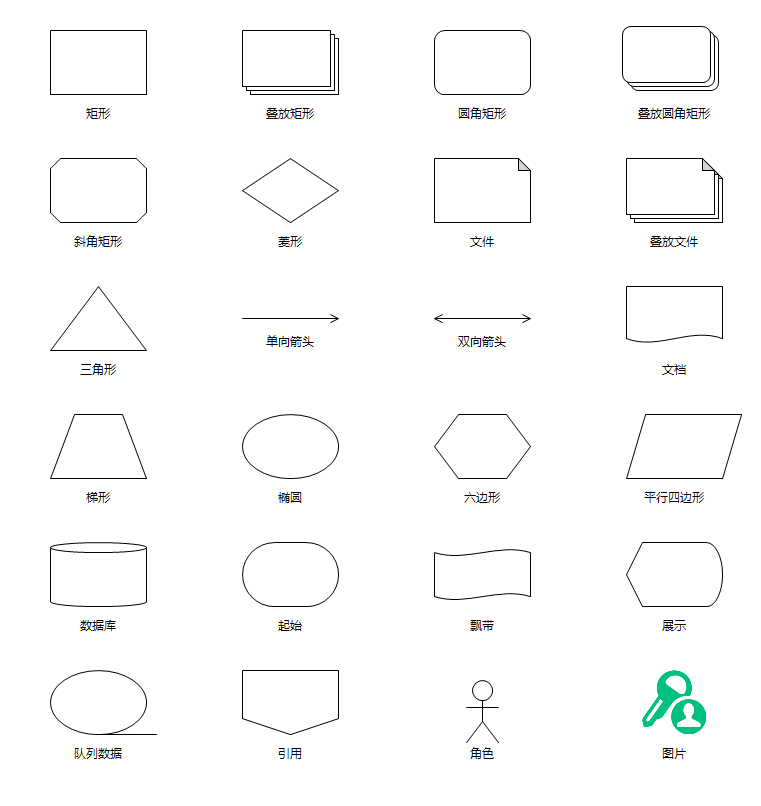

上一节介绍了用GDI+绘制圆角矩形，这一节的任务是用GDI+绘制所有常用的流程图符号 ，大家需要的时候可以直接复制套用：

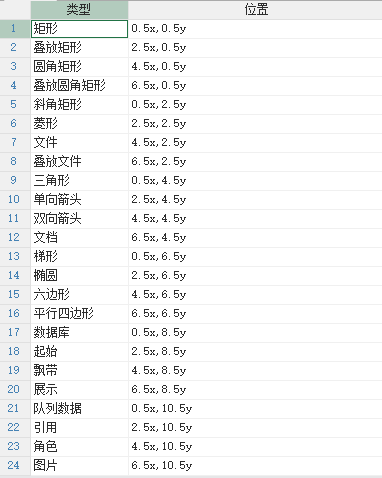

首先用一个表指定了所有形状的位置，这里所有形状的大小一致，所以只需指定位置即可：

代码分布在三个事件中。

1、窗口的AfterLoad事件的代码用于定位形状，代码没有变化：

'初始化地图控件，不是必须的，只是使得地图控件更适合作为流程图控件使用:
Dim map As GeoMap = e.Form.Controls("Map1").GeoMap
map.UseGallPetersProjection = True '采用Gall Peters投影方式
map.Viewport.Limits.MaxLat = 60 '排除高纬度地区，因为高纬度地区变形大
map.Viewport.Limits.MinLat = -60
map.Zoom = 12 '缩放指数设置为12，留足够的区间用于放大和缩小
map.CenterTo( - 160, 50) '中心点设置在有效区域的左上，因为通常都是往右下绘制，同时也留有一定的余地往左上绘制
'增加矢量层:
Dim layer As New VectorLayer()
map.Layers.Add(layer)
layer.Style.Stroke.Width = 2
layer.Style.Font = New Font("微软雅黑", 9)
'用代码绘制流程图，注意以下定位均采用像素，在绘制时候要转为经纬度，
Dim xStart As Integer = 50
Dim yStart As Integer = 30
Dim xStep As Integer = 96 '默认形状宽度，也是箭头的默认长度
Dim yStep As Integer = 64 '默认形状高度，宽高比大概是3:2, 96*2/3 = 64
For Each dr As DataRow In DataTables("流程图").DataRows '绘制流程图
    Dim gps As New List(Of GeoPoint)
    Dim pts() As String = dr("位置").Split(",")
    For idx As Integer = 0 To pts.Length - 1 Step 2
        Dim dx As Integer = xStart + Val(pts(idx)) * xStep
        Dim dy As Integer = yStart + Val(pts(idx + 1)) * yStep
        Dim p As New Point(dx, dy)
        gps.Add(map.ToGeoPoint(p))
    Next
    Dim mark As New VectorPlacemark()
    mark.Geometry = gps(0)
    mark.Marker.Shape = MarkerShape.Custom '指定采用标记使用自定形状
    mark.Marker.CustomShape = map.CreateMarkShape(dr) '将数据行设置为ShapeTag，方便OwerDrawMark事件调用
    mark.Tag = dr '将tag设置为对应的数据行，用于响应事件
    layer.Items.Add(mark)
Next

2、Map控件的GetDrawingBounds事件 的代码用于计算形状的位置和大小:

If e.ShapeTag IsNot Nothing AndAlso TypeOf e.ShapeTag Is DataRow Then
    Dim dr As DataRow = e.ShapeTag
    Dim cx As Single = e.Bounds.X + e.Bounds.Width / 2 '先计算中心点位置
    Dim cy As Single = e.Bounds.Y + e.Bounds.Height / 2
    Dim width As Single = 96
    Dim height As Single = 64
    If dr("类型") = "单向箭头" OrElse dr("类型") = "双向箭头" Then
        height = 8
    End If
    e.Bounds = New RectangleF(cx - width / 2, cy - height / 2, width, height)
End If

3、Map控件的OwerDrawMark事件的代码如下，代码比较长，但绘制出了所有的常用形状，方便大家今后参考套用：

'定义一个lambda函数，用于计算圆角矩形的路径
Dim CreateRoundedRectanglePath =
Function(tRect As Rectangle, tRadius As Integer)
    Dim tPath As New GraphicsPath()
    tRadius = Math.Min( tRadius, Math.Min(tRect.Width / 2, tRect.Height / 2))
    If tRadius <= 0 Then
        tPath.AddRectangle(tRect)
        Return tPath
    End If
    tPath.AddArc(tRect.X, tRect.Y, tRadius * 2, tRadius * 2, 180F, 90F)
    tPath.AddLine(tRect.X + tRadius, tRect.Y, tRect.Right - tRadius, tRect.Y)
    tPath.AddArc(tRect.Right - tRadius * 2, tRect.Y, tRadius * 2, tRadius * 2, 270F, 90F)
    tPath.AddLine(tRect.Right, tRect.Y + tRadius, tRect.Right, tRect.Bottom - tRadius)
    tPath.AddArc(tRect.Right - tRadius * 2, tRect.Bottom - tRadius * 2, tRadius * 2, tRadius * 2, 0F, 90F)
    tPath.AddLine(tRect.Right - tRadius, tRect.Bottom, tRect.X + tRadius, tRect.Bottom)
    tPath.AddArc(tRect.X, tRect.Bottom - tRadius * 2, tRadius * 2, tRadius * 2, 90F, 90F)
    tPath.AddLine(tRect.X, tRect.Bottom - tRadius, tRect.X, tRect.Y + tRadius)
    tPath.CloseAllFigures()
    Return tPath
End Function
'定义一个lambda函数,用于绘制文件矩形,ctlg参数为截线长度
Dim DrawFileRectangle =
Function(tGraphics As Graphics, tRect As Rectangle, ctlg As Integer, tPen As Pen)
    Dim p1 As New Point(tRect.X, tRect.Y)
    Dim p2 As New Point(tRect.Right - ctlg, tRect.Y)
    Dim p3 As New Point(tRect.Right, tRect.Y + ctlg)
    Dim p4 As New Point(tRect.Right, tRect.Bottom)
    Dim p5 As New Point(tRect.x, tRect.Bottom)
    Dim p0 As New Point(tRect.Right - ctlg, tRect.Y + ctlg)
    tGraphics.FillPolygon(Brushes.White , {p1, p2, p3, p4, p5})
    tGraphics.DrawPolygon(tPen , {p1, p2, p3, p4, p5})
    tGraphics.FillPolygon(Brushes.LightGray, {p0, p2, p3})
    tGraphics.DrawPolygon(tPen, {p0, p2, p3})
End Function
If e.ShapeTag IsNot Nothing AndAlso TypeOf e.ShapeTag Is DataRow Then
    Dim dr As DataRow = e.ShapeTag
    Dim brush As Brush = Brushes.Black
    Dim pen As New Pen(color.Black, 1)
    Dim rect As Rectangle = Rectangle.Round(e.Bounds) '用Round方法将RectangleF转换为Rectangle再绘制
    Select Case dr("类型")
        Case "矩形"
            e.Graphics.DrawRectangle(pen, rect)
        Case "椭圆"
            e.Graphics.DrawEllipse(pen, rect)
        Case "叠放矩形" '假定叠放三个矩形，每个矩形间隔4个像素
            rect.Width = rect.Width - 8
            rect.Height = rect.Height - 8
            rect.Offset(8, 8)
            For i As Integer = 0 To 2
                e.Graphics.FillRectangle(Brushes.White, rect)
                e.Graphics.DrawRectangle(pen, rect)
                rect.Offset( - 4,  - 4)
            Next
        Case "圆角矩形"
            Dim path As GraphicsPath = CreateRoundedRectanglePath.Invoke(rect, 10) '10为圆角半径
            e.Graphics.DrawPath(pen, path)
        Case "叠放圆角矩形" '假定叠放三个圆角矩形，每个矩形间隔4个像素
            rect.Width = rect.Width - 8
            rect.Height = rect.Height - 8
            rect.Offset(4, 4)
            For i As Integer = 0 To 2
                Dim path As GraphicsPath = CreateRoundedRectanglePath.Invoke(rect, 8) '8为圆角半径
                e.Graphics.FillPath(Brushes.White, path)
                e.Graphics.DrawPath(pen, path)
                rect.Offset( - 4, - 4)
            Next
        Case "斜角矩形"
            Dim obl As Integer = 10 '假定每个角切掉10像素
            Dim p1 As New Point(rect.X + obl, rect.Y)
            Dim p2 As New Point(rect.Right - obl, rect.Y)
            Dim p3 As New Point(rect.Right, rect.Y + obl)
            Dim p4 As New Point(rect.Right, rect.Bottom - obl)
            Dim p5 As New Point(rect.Right - obl, rect.Bottom)
            Dim p6 As New Point(rect.x + obl, rect.Bottom)
            Dim p7 As New Point(rect.x , rect.Bottom - obl)
            Dim p8 As New Point(rect.x, rect.y + obl)
            e.Graphics.DrawPolygon(pen , {p1, p2, p3, p4, p5, p6, p7, p8})
        Case "菱形"
            Dim p1 As New Point(rect.X + rect.Width / 2, rect.Y)
            Dim p2 As New Point(rect.Right, rect.y + rect.Height / 2)
            Dim p3 As New Point(rect.X + rect.Width / 2, rect.Bottom)
            Dim p4 As New Point(rect.x, rect.y + rect.Height / 2)
            e.Graphics.DrawPolygon(pen , {p1, p2, p3, p4})
        Case "文件"
            DrawFileRectangle.Invoke(e.Graphics, rect, 12, pen) '12为截角长度
        Case "叠放文件" '假定叠放三个文件框，每个文件框间隔4个像素
            rect.Width = rect.Width - 8
            rect.Height = rect.Height - 8
            rect.Offset(8, 8)
            For i As Integer = 0 To 2
                DrawFileRectangle.Invoke(e.Graphics, rect, 12, pen) '12为截角长度
                rect.Offset( - 4, - 4)
            Next
        Case "三角形"
            Dim p1 As New Point(rect.X + rect.Width / 2, rect.Y)
            Dim p2 As New Point(rect.Right, rect.Bottom)
            Dim p3 As New Point(rect.X, rect.Bottom)
            e.Graphics.DrawPolygon(pen , {p1, p2, p3})
        Case "单向箭头"
            Dim p1 As New Point(rect.X, rect.Y + rect.Height / 2)
            Dim p2 As New Point(rect.Right , rect.Y + rect.Height / 2)
            Dim p3 As New Point(rect.Right - 8, rect.Y)
            Dim p4 As New Point(rect.Right - 8, rect.Bottom)
            e.Graphics.DrawLines(pen , {p1, p2, p3, p2, p4})
        Case "双向箭头"
            Dim p1 As New Point(rect.X, rect.Y + rect.Height / 2)
            Dim p2 As New Point(rect.X + rect.Width , rect.Y + rect.Height / 2)
            Dim p3 As New Point(rect.X + rect.Width - 8, rect.Y)
            Dim p4 As New Point(rect.X + rect.Width - 8, rect.Y + rect.Height)
            Dim p5 As New Point(rect.X + 8, rect.Y)
            Dim p6 As New Point(rect.X + 8, rect.Y + rect.Height)
            e.Graphics.DrawLines(pen , {p1, p2, p3, p2, p4, p2, p1, p5, p1, p6})
        Case "文档"
            Dim crh As Integer = 12 '波峰高度
            Dim path As New GraphicsPath() '以后可能需要实心的，所以用GraphicsPath
            Dim p1 As New Point(rect.X, rect.Y)
            Dim p2 As New Point(rect.X + rect.Width, rect.Y)
            Dim p3 As New Point(rect.X + rect.Width, rect.Y + rect.Height - crh)
            Dim p4 As New Point(rect.x, rect.Y + rect.Height - crh)
            Dim p5 As New Point(rect.X + rect.Width / 3, rect.Y + rect.Height)
            Dim p6 As New Point(rect.X + rect.Width / 3 * 2, rect.Y + rect.Height - crh * 2)
            path.AddLines({p4, p1, p2, p3})
            path.AddBezier(p3, p6, p5, p4)
            e.Graphics.DrawPath(pen, path)
        Case "梯形"
            Dim p1 As New Point(rect.X + rect.Width / 4, rect.Y)
            Dim p2 As New Point(rect.X + rect.Width / 4 * 3, rect.Y)
            Dim p3 As New Point(rect.X + rect.Width , rect.Y + rect.Height)
            Dim p4 As New Point(rect.x, rect.Y + rect.Height)
            e.Graphics.DrawPolygon(pen, {p1, p2, p3, p4})
        Case "六边形"
            Dim p1 As New Point(rect.X + rect.Width / 4, rect.Y)
            Dim p2 As New Point(rect.X + rect.Width / 4 * 3, rect.Y)
            Dim p3 As New Point(rect.X + rect.Width , rect.Y + rect.Height / 2)
            Dim p4 As New Point(rect.X + rect.Width / 4 * 3, rect.Y + rect.Height)
            Dim p5 As New Point(rect.X + rect.Width / 4 , rect.Y + rect.Height)
            Dim p6 As New Point(rect.X , rect.Y + rect.Height / 2)
            e.Graphics.DrawPolygon(pen, {p1, p2, p3, p4, p5, p6})
        Case "平行四边形"
            Dim p1 As New Point(rect.X + rect.Width / 5 , rect.Y)
            Dim p2 As New Point(rect.X + rect.Width / 5 * 6 , rect.Y)
            Dim p3 As New Point(rect.X + rect.Width , rect.Y + rect.Height)
            Dim p4 As New Point(rect.x, rect.Y + rect.Height)
            e.Graphics.DrawPolygon(pen, {p1, p2, p3, p4})
        Case "数据库"
            Dim path As New GraphicsPath()
            Dim epht As Integer = Math.Max(rect.Height \ 6, 8) ' 椭圆高度，至少8像素
            path.AddEllipse(New Rectangle(rect.X, rect.Y, rect.Width, epht)) '顶部椭圆
            path.AddLine( rect.Right, rect.Y + epht \ 2, rect.Right, rect.Bottom - epht \ 2) '右侧直线
            path.AddArc( rect.X, rect.Bottom - epht, rect.Width, epht, 0, 180) '底部弧线
            path.AddLine(rect.X, rect.Y + epht \ 2, rect.X, rect.Bottom - epht \ 2) '左侧直线
            e.Graphics.DrawPath(pen, path)
        Case "角色" ' 绘制人形角色符号
            Dim centerX As Integer = rect.X + rect.Width \ 2 '计算中心坐标
            Dim centerY As Integer = rect.Y + rect.Height \ 2
            Dim headRadius As Integer = Math.Min(rect.Width, rect.Height) \ 6 ' 计算各部分的尺寸
            Dim bodyLength As Integer = rect.Height \ 3
            Dim armLength As Integer = rect.Width \ 3
            Dim legLength As Integer = rect.Height \ 3
            ' 绘制头部（圆形）
            Dim headRect As New Rectangle(centerX - headRadius, rect.Y + headRadius, headRadius * 2, headRadius * 2)
            e.Graphics.DrawEllipse(pen, headRect)
            ' 绘制身体（垂直线）
            Dim bodyTop As Integer = headRect.Bottom
            Dim bodyBottom As Integer = bodyTop + bodyLength
            e.Graphics.DrawLine(pen, centerX, bodyTop, centerX, bodyBottom)
            ' 绘制手臂（水平线）
            Dim armY As Integer = bodyTop + bodyLength \ 3
            e.Graphics.DrawLine(pen, centerX - armLength \ 2, armY, centerX + armLength \ 2, armY)
            ' 绘制腿部（两条斜线）
            Dim legTop As Integer = bodyBottom
            e.Graphics.DrawLine(pen, centerX, legTop, centerX - armLength \ 2, legTop + legLength)
            e.Graphics.DrawLine(pen, centerX, legTop, centerX + armLength \ 2, legTop + legLength)
        Case "起始"
            Dim path As GraphicsPath = CreateRoundedRectanglePath.Invoke(rect, rect.Height / 2) '10为圆角半径
            e.Graphics.DrawPath(pen, path)
        Case "飘带"
            Dim crh As Integer = Math.Max(rect.Height \ 6, 10) '波峰高度,最少10个像素
            Dim path As New GraphicsPath() '以后可能需要实心的，所以用GraphicsPath
            rect.Inflate(0, - crh)
            Dim p1 As New Point(rect.X, rect.Y)
            Dim p2 As New Point(rect.Right, rect.Y)
            Dim p3 As New Point(rect.Right, rect.Bottom)
            Dim p4 As New Point(rect.x, rect.Bottom)
            Dim p5 As New Point(rect.X + rect.Width / 3, rect.Y + crh)
            Dim p6 As New Point(rect.X + rect.Width / 3 * 2, rect.Y - crh)
            Dim p7 As New Point(rect.X + rect.Width / 3, rect.Bottom + crh)
            Dim p8 As New Point(rect.X + rect.Width / 3 * 2, rect.Bottom - crh)
            path.AddLine(p4, p1)
            path.AddBezier(p1, p5, p6, p2)
            path.AddLine(p2, p3)
            path.AddBezier(p3, p8, p7, p4)
            e.Graphics.DrawPath(pen, path)
        Case "展示"
            Dim path As New GraphicsPath()
            Dim epht As Integer = Math.Max(rect.Width \ 6, 12) ' 椭圆宽度，至少12像素
            Dim p1 As New Point(rect.Right - epht, rect.Y)
            Dim p2 As New Point(rect.X + epht, rect.y)
            Dim p3 As New Point(rect.X, rect.Y + rect.Height / 2)
            Dim p4 As New Point(rect.X + epht, rect.y + rect.Height)
            Dim p5 As New Point(rect.Right - epht, rect.Y + rect.Height)
            Dim elprect As New Rectangle(rect.Right - 2 * epht, rect.Y, epht * 2, rect.Height) '椭圆矩形
            path.AddLines({p1, p2, p3, p4, p5})
            path.AddArc(elprect, 90, - 180)
            e.Graphics.DrawPath(pen, path)
        Case "队列数据"
            e.Graphics.DrawEllipse(pen, rect)
            e.Graphics.DrawLine(pen, New Point(rect.X + rect.Width / 2, rect.Bottom), New Point(rect.Right + 10, rect.Bottom))
        Case "引用"
            Dim p1 As New Point(rect.X, rect.y)
            Dim p2 As New Point(rect.Right, rect.Y)
            Dim p3 As New Point(rect.Right, rect.Y + rect.Height * 3 / 4)
            Dim p4 As New Point(rect.x + rect.Width / 2, rect.Bottom)
            Dim p5 As New Point(rect.X, rect.Y + rect.Height * 3 / 4)
            e.Graphics.DrawPolygon(pen, {p1, p2, p3, p4, p5})
        Case "图片"
            rect.Inflate(-(rect.Width - rect.Height) / 2, 0)
            e.Graphics.DrawImage(GetImage("角色.png"), rect)
    End Select
    '在形状正下方绘制文本(形状类型)
    e.Bounds = New RectangleF(e.Bounds.X, e.Bounds.Y + e.Bounds.Height + 10, e.Bounds.Width, 20)
    Dim fnt As New Font("微软雅黑", 9)
    Dim fmt As New StringFormat()
    fmt.Alignment = StringAlignment.Center
    fmt.LineAlignment = StringAlignment.Center
    e.Graphics.DrawString(dr("类型"), fnt, brush, e.Bounds, fmt)
End If
