目录树形式的授权

普通用户可以忽略本节的内容。

本节内容可以参考CaseStudy目录下的文件: 目录树形式的授权.Table

设计步骤:

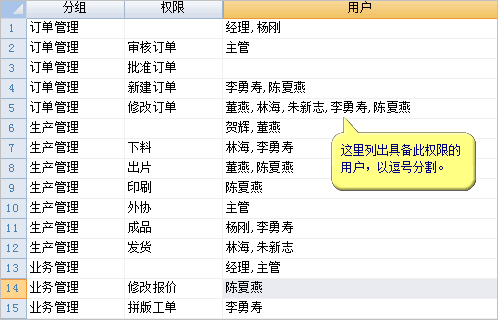

1、新建一个下图所示的表:

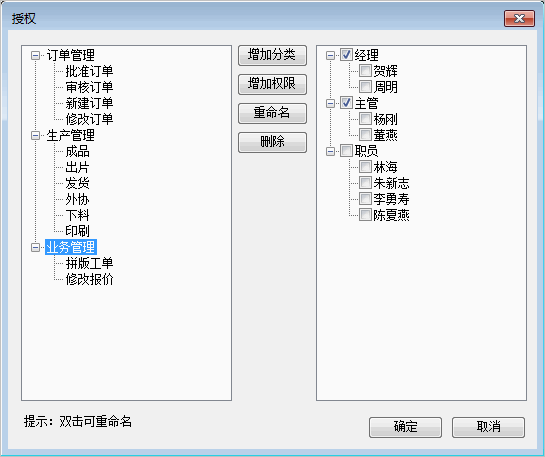

2、新建一个下图所示的窗口,右边目录树的“显示复选框”属性设置为True:

3、设置窗口和控件的事件代码.

窗口的AfterLoad事件代码为:

Dim trv1 As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
trv2 As WinForm.TreeView = e.Form.Controls("TreeView2")
trv1.BuildTree(
"授权","分组|权限")
For
Each u As UserInfo In Users
    If
u.Type = UserTypeEnum.User Then
        If
trv2.Nodes.Contains(u.Group) = False Then
            trv2.Nodes.Add(u.Group)

        End
If
        trv2.Nodes(u.Group).Nodes.Add(u.Name)

    End
If
Next

Trv1.Nodes(
0
).Expand()
trv2.ExpandAll()

左边目录树的AfterSelectNode事件代码:

Dim trv1 As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
trv2 As WinForm.TreeView = e.Form.Controls("TreeView2")
Dim
dr As DataRow
If
e.node.Level = 0 Then
    dr =
DataTables("授权").Find("分组 = '" & e.Node.Name & "' And 权限 Is Null")
Else

    dr =
DataTables("授权").Find("分组 = '" & e.Node.ParentNode.Name & "' And 权限 = '" & e.Node.Name & "'")
End
If
Dim
nms As New List(of String)
If
dr IsNot Nothing AndAlso dr.IsNull("用户") = False
    nms.AddRange(dr(
"用户").Split(","))
End
If
For
Each nd As WinForm.TreeNode In trv2.AllNodes
    nd.Checked = nms.Contains(nd.Name)

Next

左边目录树的AfterEditNode事件代码:

If e.NewText = "" Then
    e.Cancel =
True
ElseIf
e.Node.Level = 0 Then '重命名分组

Dim dt As DataTable = DataTables("授权")
    Dim
dr As DataRow
    dr = dt.Find(
"分组 = '" & e.NewText & "' And 权限 Is Null" ) '判断新输入的分组是否存在

If dr IsNot Nothing '如果存在,取消输入.
        MessageBox.Show(
"此分组已经存在!", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information)
        e.cancel =
True
    Else
        For
Each dr In dt.Select("分组 = '" & e.Node.Name & "'" ) '重命名分组
            dr(
"分组") = e.NewText
        Next

        e.Node.Name = e.NewText
'使得节点的名称和标题保持一致.

End If
ElseIf
e.Node.Level = 1 '重命名权限

Dim dt As DataTable = DataTables("授权")
    Dim
dr As DataRow

Dim fz As String = e.Node.ParentNode.Name '获得分组名
    dr = dt.Find(
"分组 = '" & fz & "' And 权限 = '" & e.NewText & "'" ) '判断新输入的权限是否存在

If dr IsNot Nothing '如果存在,取消输入.
        MessageBox.Show(
"此权限已经存在!", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information)
        e.Cancel =
True
    Else

        dr = dt.Find(
"分组 = '" & fz & "' And 权限 = '" & e.Node.Name & "'" ) '找出对应的行
        dr(
"权限") = e.NewText '重命名权限
        e.Node.Name = e.NewText
'使得节点的名称和标题保持一致.

End If
End
If

右边目录树的AfterCheckNode事件:

Dim trv1 As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
trv2 As WinForm.TreeView = e.Form.Controls("TreeView2")
Dim
nd1 As WinForm.TreeNode = trv1.SelectedNode
Dim
dr As DataRow
If
e.Node.ParentNode IsNot Nothing Then '取消父节点的选中标记,因为选中子节点,就不要选中父节点了

e.Node.ParentNode.Checked = False
End If
For Each
cnd As WinForm.TreeNode In e.Node.Nodes '取消子节点的选中标记,因为选中父节点,就不要选中子节点了

cnd.Checked = False
Next
If
nd1.Level = 0 Then

dr = DataTables("授权").Find("分组 = '" & nd1.Name & "' And 权限 Is Null")
Else

dr = DataTables("授权").Find("分组 = '" & nd1.ParentNode.Name & "' And 权限 = '" & nd1.Name & "'")
End If
If
dr IsNot Nothing Then
    Dim
nms As String
    For Each
nd2 As WinForm.TreeNode In trv2.AllNodes
        If
nd2.Checked  Then

nms  = nms & "," &  nd2.Name
        End If
    Next
    If
nms > "" Then

dr("用户") = nms.Trim(",")
    Else

dr("用户") = Nothing
    End If
End If

增加分类按钮的代码:

Dim trv As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
i As Integer
trv.
Select()
Do

    i = i+
1

Dim nm As String = "分组" & i
    If
trv.Nodes.Contains(nm) = False
        Dim
dr As DataRow = DataTables("授权").AddNew
        Dim
nd As WinForm.TreeNode = trv.Nodes.Add(nm)
        dr(
"分组") = nm
        trv.SelectedNode = nd
        trv.BeginEdit

        Exit
Do
    End
If
Loop

增加权限按钮的代码:

Dim trv As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
pd As WinForm.TreeNode = trv.SelectedNode
trv.
Select()
If
pd.Level = 1 Then
    pd = pd.ParentNode

End
If
Dim
i As Integer
Do

    i = i+
1

Dim nm As String = "权限" & i
    If
pd.Nodes.Contains(nm) = False
        Dim
nd As WinForm.TreeNode = pd.Nodes.Add(nm)
        Dim
dr As DataRow = DataTables("授权").AddNew()
        dr(
"分组") = pd.name
        dr(
"权限") = nm
        trv.SelectedNode = nd
        trv.BeginEdit

        Exit
Do
    End
If
Loop

删除按钮的代码:

Dim trv As WinForm.TreeView = e.Form.Controls("TreeView1")
Dim
nd As WinForm.TreeNode = trv.SelectedNode
trv.
Select()
If
nd Is Nothing Then
    Return
End
If
If
nd.Level = 0 Then '删除分组

Dim dt As DataTable = DataTables("授权")
    If
MessageBox.Show("确定要删除此分组码?","提示",MessageBoxButtons.YesNo,MessageBoxIcon.Question) = DialogResult.Yes Then
        For
Each dr As DataRow In dt.Select("分组 = '" & nd.Name & "'" )
            dr.Delete

        Next

        nd.Delete

    End
If
ElseIf
nd.Level = 1 '删除权限

Dim dt As DataTable = DataTables("授权")
    Dim
dr As DataRow

Dim fz As String = nd.ParentNode.Name '获得分组名
    dr = dt.Find(
"分组 = '" & fz & "' And 权限 = '" & nd.Name & "'" ) '找出对应的行
    dr.Delete
    nd.Delete

End
If

4、增加一个自定义函数,函数名为ShouQuan,代码为:

If User.Type <> UserTypeEnum.User Then ' 如果是开发者或者管理员

Return True '则具备所有权限
End
If
Dim
dt As DataTable = DataTables("授权")
Dim
dr As DataRow
'首先判断分组的授权用户是否包括此用户或此用户所属的分组

dr = dt.Find(
"分组 = '" & args(0) & "' And 权限 Is Null" )
If
dr Is Nothing Then
    MessageBox.show(
"不存在名为""" & args(0) & "分组!","提示",MessageBoxButtons.OK,MessageBoxIcon.Information)
    Return
False
End
If
If
dr.IsNull("用户") = False Then
    Dim
nms() As String = dr("用户").Split(",")
    For
Each nm As String In nms
        If
nm = User.Group OrElse nm = User.Name Then '如果授权用户包括登录用户所属的分组或其用户名

Return True '返回True

End If
    Next
End
If
'然后判断权限的授权用户是否包括此用户或此用户所属的分组

If
Args(1) = "" Then
    Return
False
End
If
dr = dt.Find(
"分组 = '" & args(0) & "' And 权限 = '" & args(1) & "'")
If
dr Is Nothing Then
    MessageBox.show(
"不存在名为""" & args(1) & "权限!","提示",MessageBoxButtons.OK,MessageBoxIcon.Information)
    Return
False
End
If
If
dr.IsNull("用户") = False Then
    Dim
nms() As String = dr("用户").Split(",")

For Each nm As String In nms
        If
nm = User.Group OrElse nm = User.Name Then '如果授权用户包括登录用户所属的分组或其用户名

Return True '返回True

End If

    Next
End If
Return False

5、使用说明

实际使用的时候,要判断登录用户是否具备特定的权限是很简单的,例如判断用户是否具备批准订单的权限:

If Functions.Execute("ShouQuan","订单管理","批准订单") Then

'用于批准订单的代码
End If

再例如判断用户是否具备生产管理分组的全部权限:

If Functions.Execute("ShouQuan","生产管理","") Then
    '代码

End If
